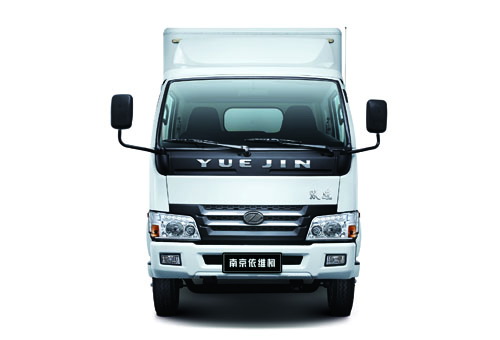

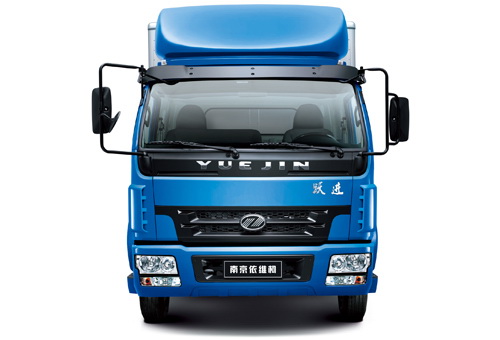

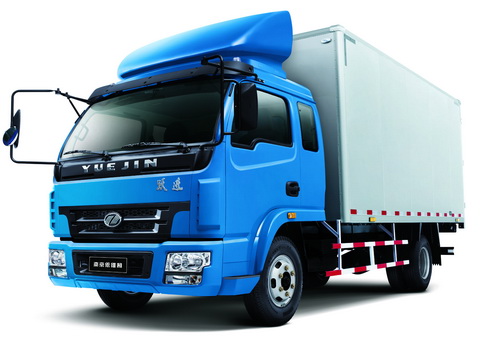

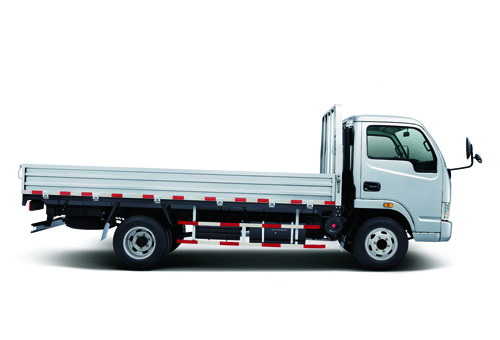

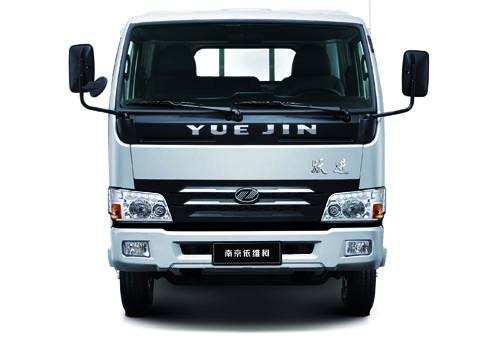

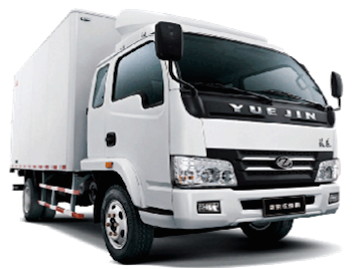

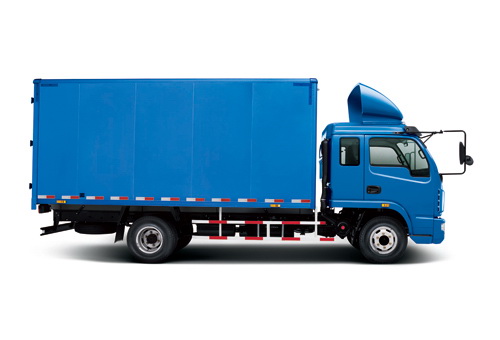

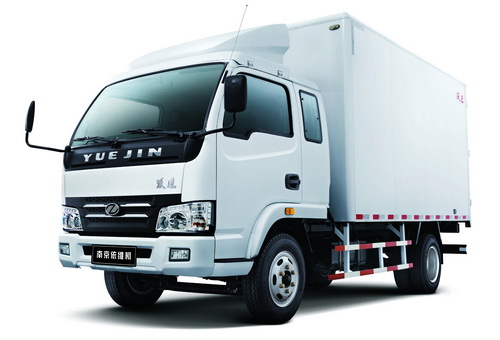

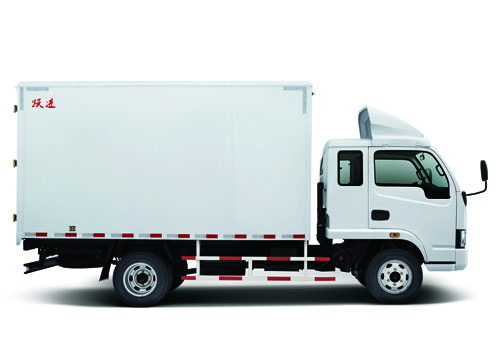

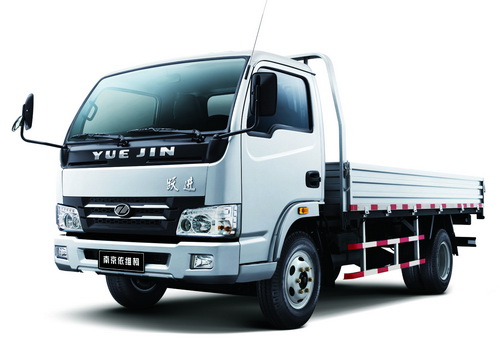

YUEJIN H product series style design comes from SAIC R&D Center, whose design is presided over by the famous styling designer; its appearance is fashionable and grace, which is more in line the Chinese aesthetic concept.
Frame rear-view mirrors, large grille, air foil, integrated head light, a perfect matching.
Bumper strength increased, safety guaranteed, more comfortable and easy in driving and riding.

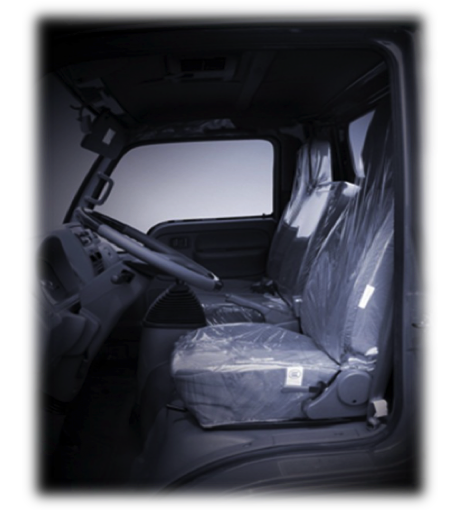

The cab internal space is capacious and comfortable, reasonably arranged; the seats are the aero seats, comfortable, not easy to get dirty; advanced coating technology is adopted, the complete vehicle is well sealed, with obvious effect of sound insulation and dust prevention.
The dashboard uses environmental protection material, green and safer, equipped with standard high-power heater with remarkable heating effect; optional air conditioning of the original plant can be installed, which can produce good cooling and heating effect, more comfortably in summer and winter when driving and riding.

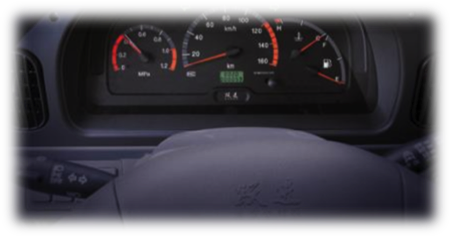

Inductive electronic odometer is configured, display more accurately, common mechanical faults of similar products are eliminated, thus the maintenance cost is reduced, fine for the user.
In the coastal and more developed areas, the road conditions are becoming better, leading to reduction of overload situation, so that users are more concerned for maximum speed and fuel economy. A status is added for the complete vehicle of medium body main model, by adjusting the speed ratio, matching reasonably the power assembly and the transmission system of the medium-body main truck model, maximum speed of the complete vehicle is increased and the economical speed section improved.
The transmission control adopts remote double flexible cable control, which is high in transmission efficiency and easy for maintenance; the manipulator uses bearing fit, gear select/shifting is flexible and reliable, with long service life; the engine and transmission adopt brand new matching of Iveco technology, so it has more powerful power, stronger overload performance and more powerful climbing ability.
Product Series | H100-28 | H500-33 | H500-38 |
---|---|---|---|
Model | NJ1028DBU (Pick Up Truck code) / NJ1028DBXU (Pick Up Truck code) / NJ5028DBU (Freezer Code) / NJ3028DBU (Dumper Code) |
NJ1043DAU (Pick Up Truck code) / NJ3043DAU (Dumper Code) |
NJ1043DALU (Pick Up Truck code) / NJ5043DALU (Freezer Truck Code) |
Cab Type | Single Cab | ||
Engine Model Displacement (cc) |
YN4100QBZL 3298 |
YZ4102ZLQ 3660 |
|
Rated Power | 95HP/3200rpm | 110HP/2900rpm | |
Max. Torque | 245Nm/2200rpm< | 310Nm/1800rpm | |
Laden Mass | 1490KG | 3100KG | 3200KG |
G.V.W. | 2950KG | 6000KG | 6200KG |
Overall Dimension(mm) | 5435x1960x2285 | 5995x2076x2285 | 6915x2076x2285 |
Cargo Body Dimension(mm) | 3710×1810×370 | 4240×1970×450 | 5105×2080×550 |
Wheelbase | 2800mm | 3308mm | 3800mm |
Brake | Hydraulic Brake | Air Brake | |
Power Steering | Yes | ||
Pick Up Truck FOB China Freezer Truck FOB China Dumper Truck FOB China |
3500 USD 4500 USD 4000 USD |
4000 USD 4500 USD |
4500 USD 5500 USD |
